GIGABYTE B660M AORUS PRO AX INTEL MOTHERBOARD

GIGABYTE B660M AORUS PRO AX INTEL MOTHERBOARD

Gigabyte B660M Aorus PRO AX DDR4 Intel 2.5GbE LAN, WIFI 6 B660 Rear USB 3.2 Gen 2×2 Type-C,Micro ATX Motherboard

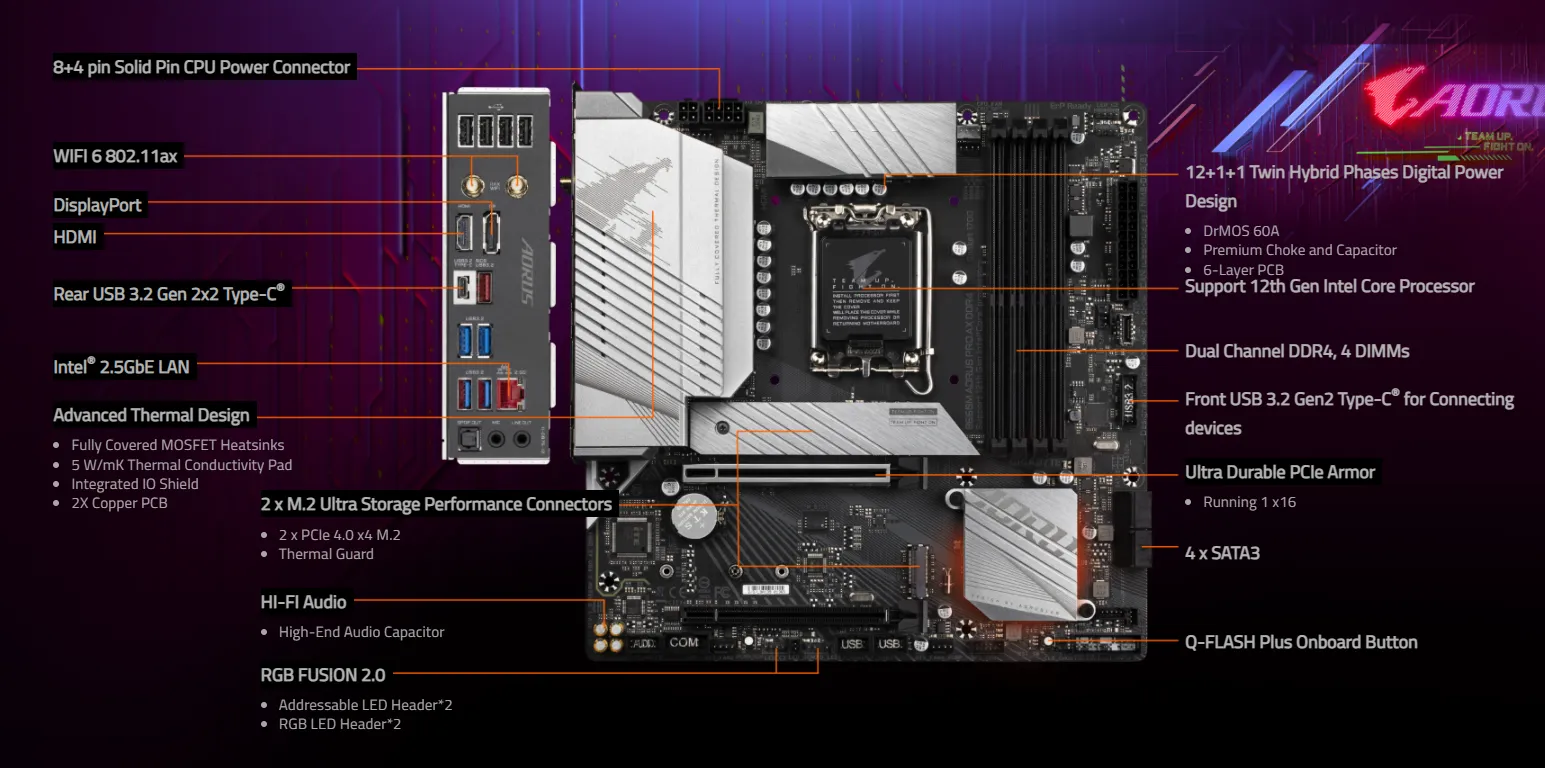

• Intel® B660 AORUS Motherboard with 12+1+1 Twin Hybrid Phases Digital VRM Design, Fully Covered Thermal Design, 2 x PCIe 4.0 M.2 with Thermal Guard, Intel® 2.5GbE LAN, WIFI 6 802.11ax, Rear USB 3.2 Gen 2×2 Type-C®, RGB FUSION 2.0, Q-Flash Plus
• Supports 12th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• 12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
• Shielded Memory Routing for Better Memory Overclocking

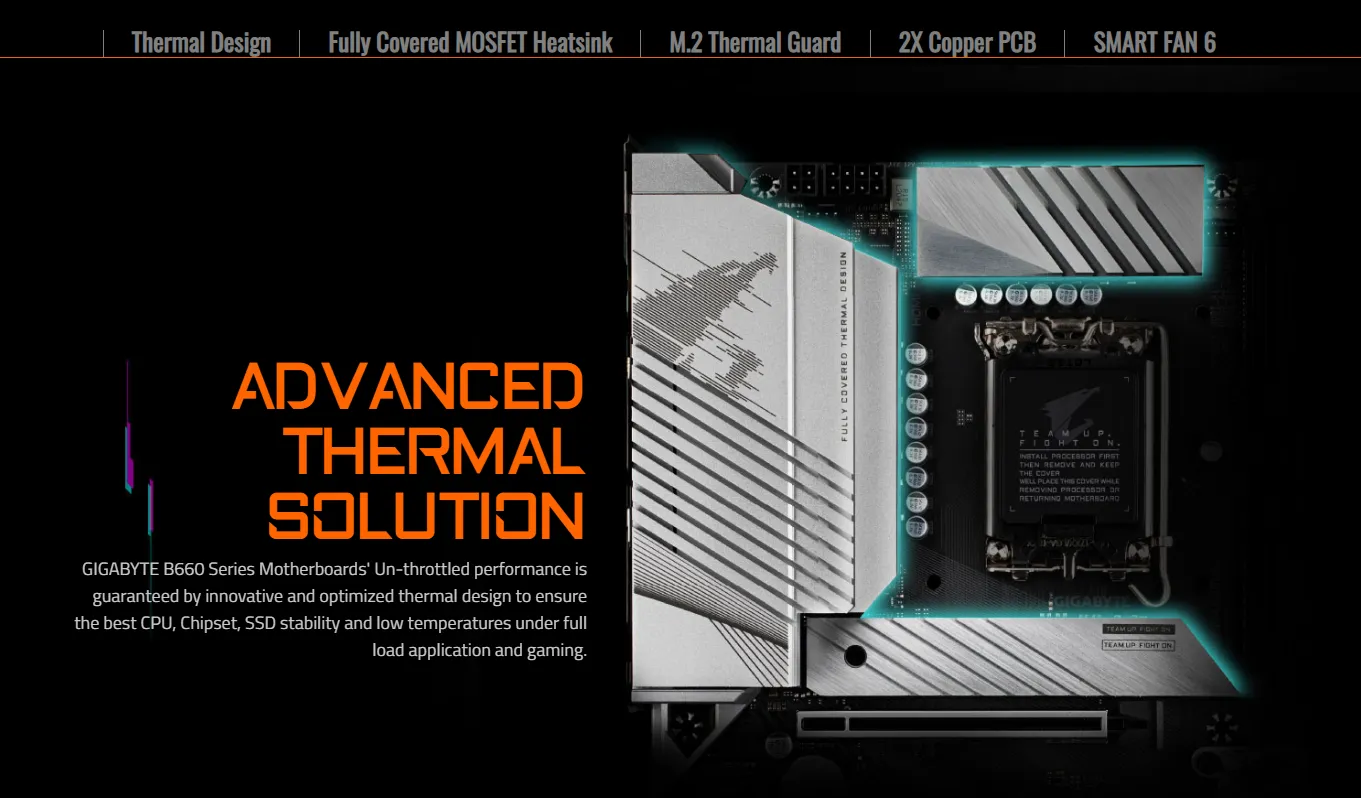

• Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
• WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
• Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
• Dual Ultra-Fast NVMe PCIe 4.0* x4 M.2 with Thermal Guard
• SuperSpeed USB 3.2 Gen 2×2 Type-C® delivers up to 20Gb/s transfer speeds
• Pre-installed IO Shield for easy and quick installation
• RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
