GIGABYTE Z690 UD AX INTEL MOTHERBOARD

GIGABYTE Z690 UD AX INTEL MOTHERBOARD

Gigabyte Z690 UD AX LGA1700 ATX Desktop Motherboard With DDR5,Pcle 5, USB 3.2 Gen 2×2 support,Intel Wi-Fi 6 AX201

• Intel® Z690 Motherboard with Direct 16+1+2 Phases Digital VRM Design, DDR5 XTREME MEMORY, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, WIFI6 802.11ax, Rear USB 3.2 Gen 2×2 Type-C®, Q-Flash Plus
• Supports 12th Gen Intel® Core™ Series Processors
• Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
• DDR5 MEMORY Design with SMD DIMM and Shielded Memory Routing
• Direct 16+1+2 Digital VRM Design with 60A Power Stage* and Tantalum Polymer Capacitor​
• Ultra Performance VRM Heatsinks

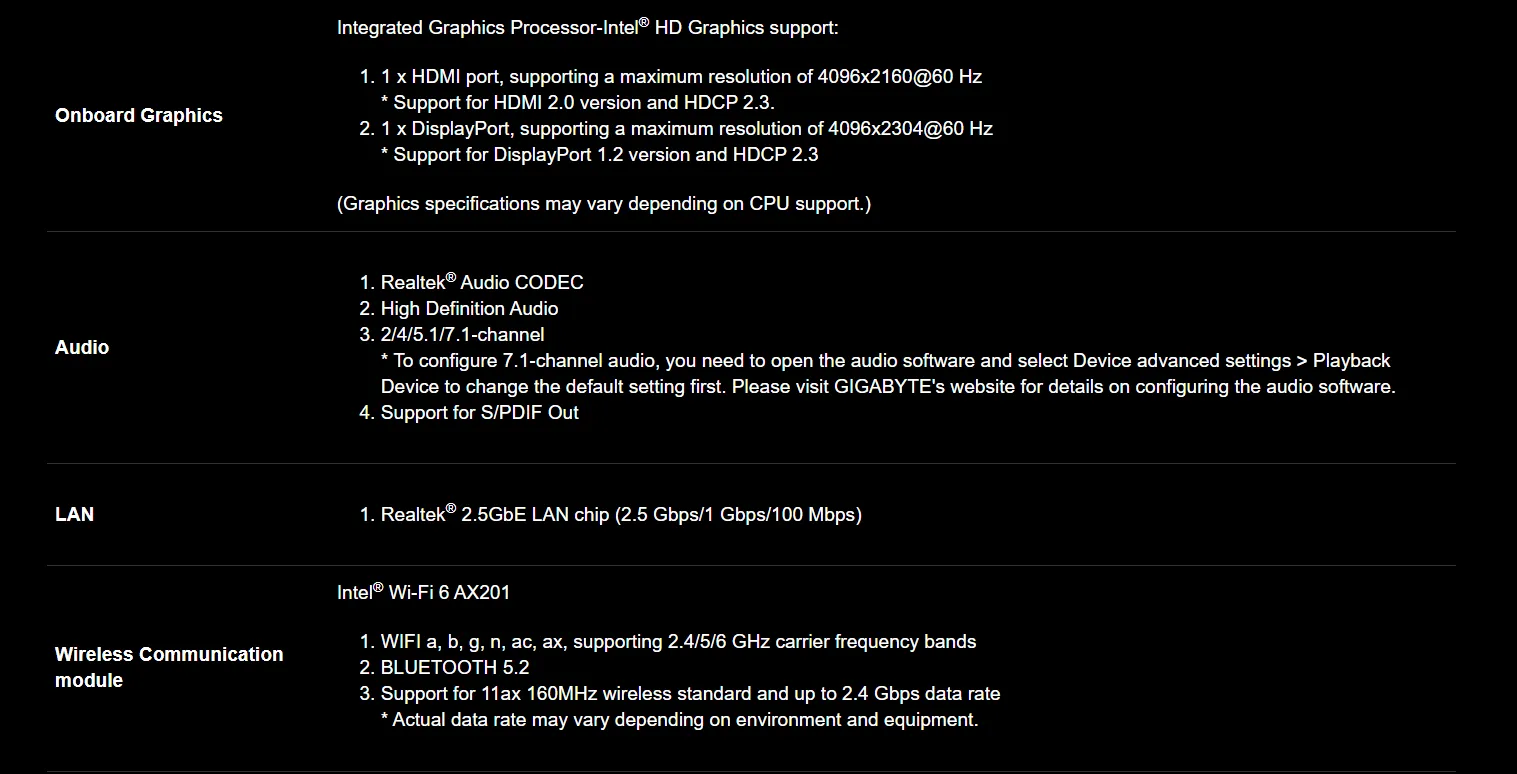

• Intel® WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna
• Fast 2.5GbE LAN with Bandwidth Management

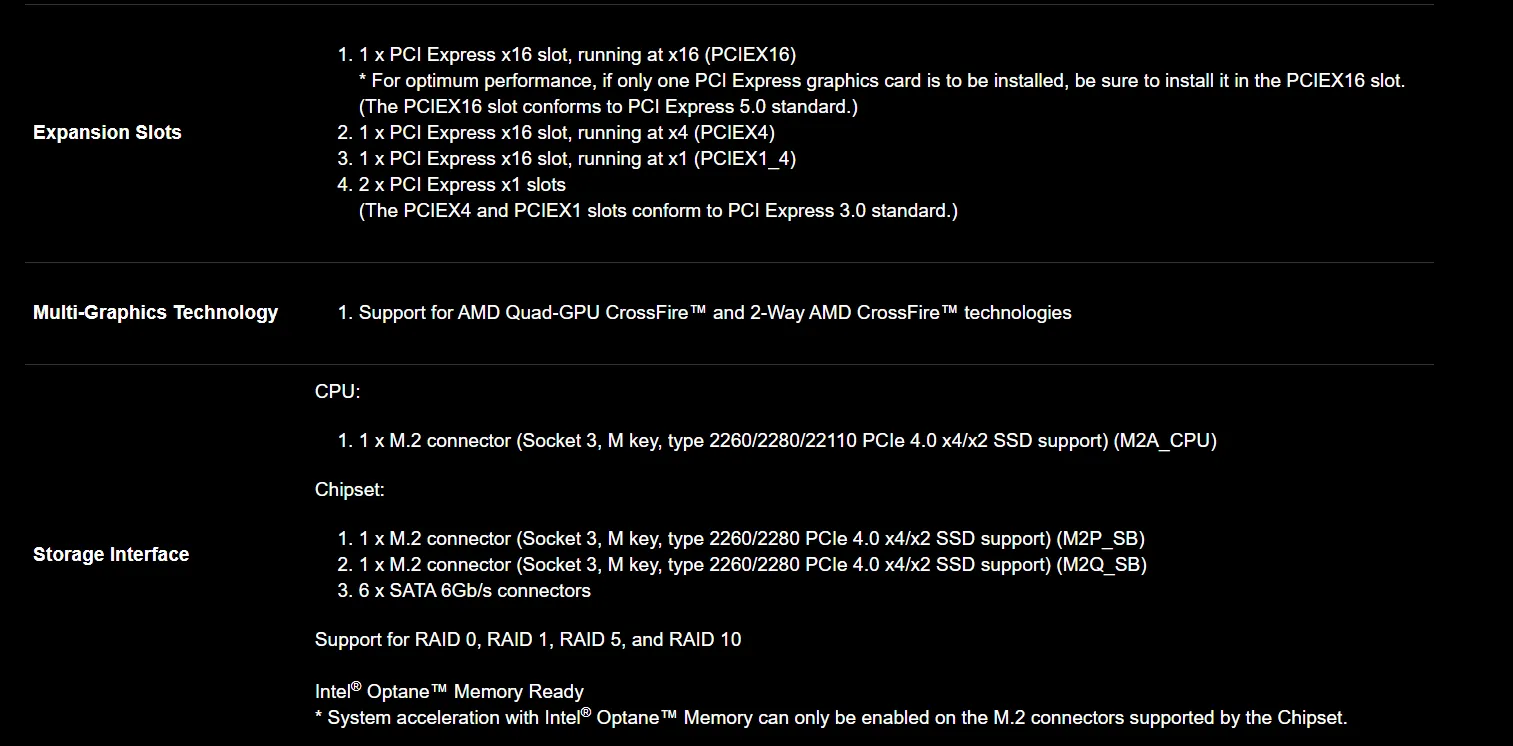

• 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards

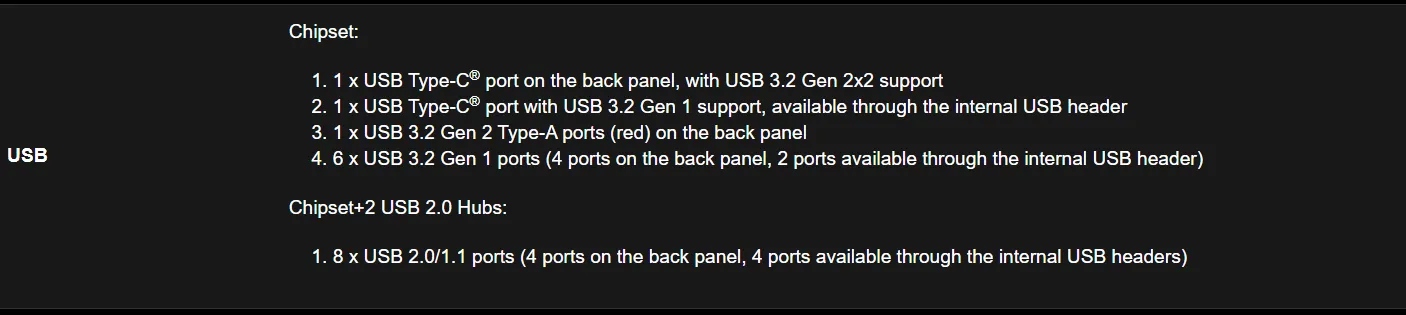

• SuperSpeed USB 3.2 Gen 2×2 TYPE-C® delivers up to 20Gb/s transfer speeds
• RGB FUSION 2.0, supports Addressable LED & RGB LED Strips
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

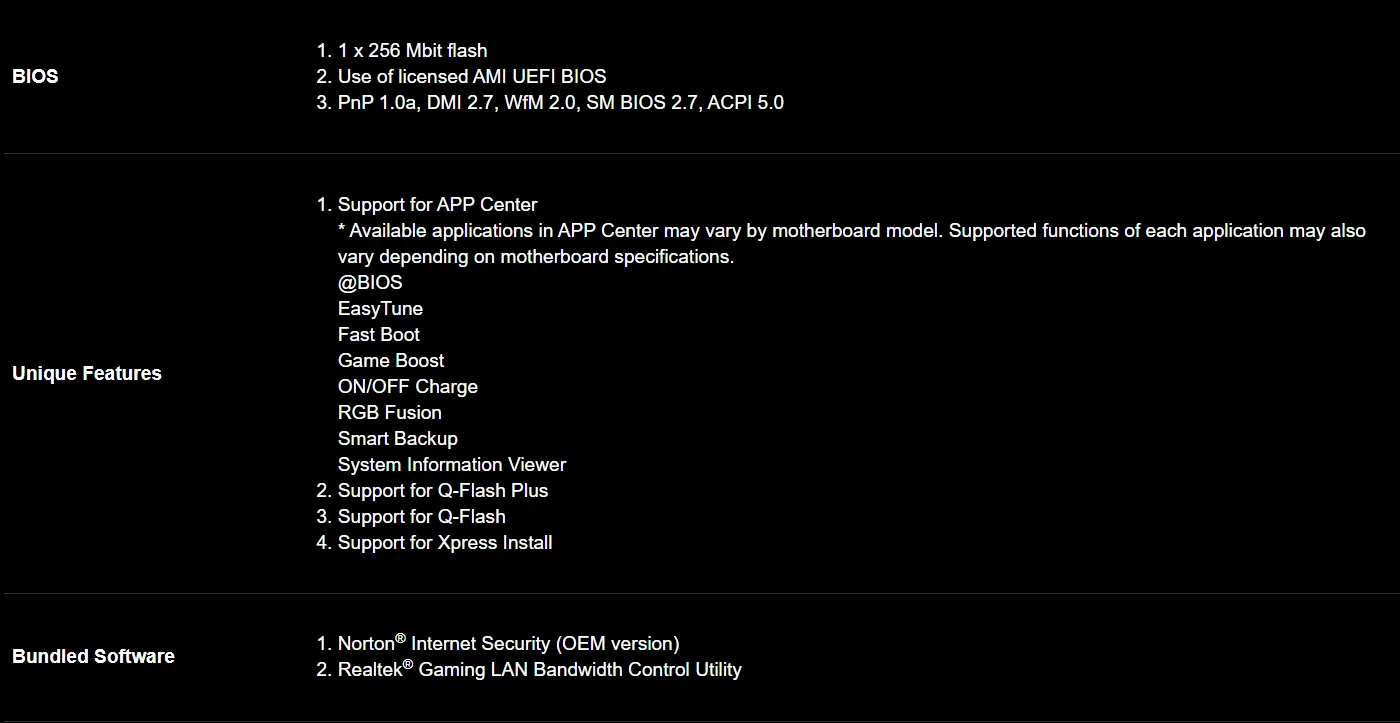

• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
